Formulation and optimization of astaxanthin nanoemulsions with marine phospholipids derived from large yellow croaker (Larimichthys crocea) roe

Luyao Huanga, b, Lingyun Zhangb, Ruifen Lic, Peng Lianga, b*

aEngineering Research Centre of Fujian-Taiwan, Special Marine Food Processing and Nutrition, Ministry of Education, Fuzhou 350002, PR China;

bCollege of Food Science, Fujian Agriculture and Forestry University, Fuzhou 350002, PR China;

cSection for Ingredients and Dairy Technology, Department of Food Science, University of Copenhagen, Rolighedsvej 26, DK-1958 Frederiksberg C, Denmark

Abstract

The aim of this work was to investigate the emulsifying capacity of marine phospholipids derived from large yellow croaker roe (LYCRPLs). Initially, conditions for preparing astaxanthin (1% w/w) nanoemulsions with LYCRPLs were optimized based on single-factor experiments, including homogenization pressure, homogenization cycle, emulsifier concentration and corn oil concentration via the response surface methodology. The optimal homogenization pressure was 60 MPa, the optimal number of homogenization cycles was nine, the optimal emulsifier concentration was 4.7%, and the optimal oil concentration was 20%. Under these conditions, the stability, particle size and polydispersity index of nanoemulsions were 0.018 ± 0.0016, 247 ± 4.5 nm and 0.215±0.019, respectively. The droplets of nanoemulsions were characterized by transmission electron microscopy, which revealed that all the droplets were more or less spherical and nonaggregated. In addition, the storage experiments indicated that the nanoemulsions were stable at different temperatures. Therefore, LYCRPLs could be explored as carriers for the delivery of insoluble bioactive compounds in the food industry.

Key words: astaxanthin, emulsifier, large yellow croaker roe, nanoemulsions, phospholipids

* Corresponding Authors: Peng Liang, Engineering Research Centre of Fujian-Taiwan, Special Marine Food Processing and Nutrition, Ministry of Education, Fuzhou 350002, PR China. Email: [email protected]

Received: 3 March 2021; Accepted: 2 August 2021; Published: 9 September 2021

DOI: 10.15586/ijfs.v33i3.2029

© 2021 Codon Publications

This is an Open Access article distributed under the terms of the Creative Commons Attribution-NonCommercial-ShareAlike 4.0 International (CC BY-NC-SA 4.0). License (http://creativecommons.org/licenses/by-nc-sa/4.0/)

Introduction

An emulsifier is a substance that improves surface tension between various constituent phases in an emulsion and make them form a uniform and stable dispersion system or emulsion (Dickinson, 2009). Depending on the source, two types of emulsifiers exist: natural and synthetic. In recent years, natural emulsifiers have aroused great interest in food and other industries due to their safety, nutritiousness and other advantages, and they have been gradually replacing synthetic emulsifiers (Kim et al., 2020). At present, the commonly used food emulsifiers are proteins, polysaccharides, phospholipids and other surfactants (Kralova and Sjöblom, 2009; Xi et al., 2018). Many studies have shown that phospholipids possess a significant capacity to serve as emulsifiers. For example, Komaiko et al. (2016) found that sunflower phospholipids were an effective natural emulsifier to transport ω-3 polyunsaturated fatty acids to food products. Donsì et al. (2011) successfully prepared the emulsion using soybean lecithin. In addition, McClements and Gumus (2016) compared the effects of different natural emulsifiers (soybean lecithin, whey protein and Arabic gum) for preparing corn oil-in-water nanoemulsions. The results showed that phospholipids have good emulsifying capacity.

Large yellow croaker (Larimichthys crocea) is one of the major economic marine fish in China, and it is mainly found distributed in Fujian Province. It has been widely consumed due to its delicious taste and nutrition value (Hui et al., 2016). Large yellow croaker roe is a major by-product obtained during the processing of large yellow croaker, which has the advantages of low pricing and easy availability of raw materials. In our previous study (Liang et al., 2018), we found that large yellow croaker roe contains large amount of marine phospholipids (MPLs), and their phospholipid species and molecular types have been determined carefully. Recently, MPLs have become the focus of further research. MPLs predominantly contain docosahexaenoic acid (DHA) or eicosa pentaenoic acid (EPA) (Liang et al., 2018). However, no findings have been reported on the emulsification capacity of MPLs derived from large yellow croaker roe. Therefore, we assume that large yellow croaker roe phospholipids (LYCRPLs) can be explored as carriers for the delivery of insoluble bioactive compounds in the food industry.

Astaxanthin (AST) is a carotenoid pigment found in numerous organisms (Pan-Utai et al., 2021). It is known for its impact on physiological functions, which include anti-oxidative (Pogorzelska et al., 2017), anti-tumor (Nagendraprabhu and Sudhandiran, 2011), and anti-inflammatory properties (Ju et al., 2017) as well as its ability to improve vision (Li et al., 2012), etc. Consequently, AST has the potential for a broad range of applications in functional foods. However, AST is a hydrophobic substance, and its utilization in the food is limited due to its insolubility (Ambati et al., 2014). Numerous studies have shown that nanoemulsion technology is an effective method for carrying AST, which can improve its water solubility and bioavailability (Martínez-Delgado et al., 2017; Liu et al., 2019). Therefore, we assume that LYCRPLs may emulsify and improve the solubility of AST. Meanwhile, new and more effective means are required to make high-value use of large yellow croaker roe.

The present study aimed to formulate and optimize AST nanoemulsions to prepare AST nanoemulsions with MPL derived from large yellow croaker roe effectively. Homogenization pressure, homogenization cycles, emulsifier concentration and oil concentration were optimized systematically based on the response surface methodology (RSM) for preparing nanoemulsions, and the same were characterized by transmission electron microscopy (TEM). Furthermore, particle size, polydispersity index (PDI) and zeta-potential of nanoemulsions were measured during the 28-day storage period.

Materials and Methods

Materials

Large yellow croaker roe phospholipids containing 76.36% phosphatidylcholine, 12.30% lysophosphatidylcholine, 9.12% phosphatidylethanolamine, 1.09% phosphatidylinositol and 98.87% total phospholipids were obtained from the aquatic food products lab in Fujian Agriculture and Forestry University and prepared and characterized. AST (≥97%) was purchased from Sigma-Aldrich (St. Louis, MO, USA). Refined corn oil was purchased from the local supermarket (Fuzhou City, Fujian Province). All chemicals were obtained from Sinopharm Chemical Reagent Co. Ltd (Fujian, China). Double-distilled water (Milli-Q) was used to prepare all solutions and nanoemulsions.

Preparation of nanoemulsions

The nanoemulsions were prepared according to the method provided by Shu et al. (2018) with some modifications. An oil phase was prepared by dissolving 1% (w/w) AST in refined corn oil (Figure 1). The mixtures were stirred for 2 h at ambient temperature and subsequently filtered through a 0.45-μm membrane. The aqueous phase was prepared by dispersing LYCRPLs in Milli-Q water. Three homogenization steps were performed to formulate AST nanoemulsions. First, coarse emulsions containing 5–25% (w/w) oil phase and 95– 75% (w/w) aqueous phase were stirred constantly using a magnetic stirrer for 2 h. Next, coarse emulsions were treated via a hand-held homogenizer (HN-3K, Hanuo, Shanghai, China) at 20,000 rpm for 5 min. In the last step, the resulting coarse emulsions were passed through an ultra-high-pressure nano-homogenizer (FB-110Q, Litu, Shanghai, China) for 1–7 cycles at a homogenization pressure of 10–80 MPa at ambient temperature. All operating conditions were studied at different levels. The obtained nanoemulsions were stored at 4oC prior to further analysis.

Figure 1. Schematic diagram of preparation of AST nanoemulsions stabilized by LYCRPLs.

Measurement of particle size, polydispersity index and zeta-potential

The particle size, PDI and zeta-potential of nanoemulsions were measured by dynamic light scattering using a Zeta sizer Nano-ZS90 (Malvern Instruments, Worcestershire, UK). This instrument is able to measure particle sizes ranging from 0.3 to 5,000 nm. The refractive indices of both aqueous and oil phases were set at 1.333 and 1.476, respectively. The samples for measurement were diluted with Milli-Q water at a ratio of 1:500 (v/v) and then placed in the measurement cell. The particle size of nanoemulsions was expressed as z-average diameter.

Measurement of stability of nanoemulsions

The stability of nanoemulsions was determined using a stability analyzer LUMFuge (LUMiFuge111, Berlin, Germany). The centrifuge quantifies the stability of the dispersion system by continuously recording dynamic changes in the light transmittance of samples. First, 470-mL nanoemulsion is added in the centrifuge tube, and the tube is subsequently placed in the LUMiFuge111. The operating conditions were 3,000 rpm for 10 min at 20°C. The computer automatically records the light transmittance spectra of the sample.

Microscopic observation of nanoemulsions

The microscopic observation was carried out by using a transmission electron microscope (TEM, HT770, Hitachi Corporation, Japan). Prior to observation by TEM, the nanoemulsions were diluted to acertain concentration with double-distilled water. The appropriate amount of emulsion is absorbed and dripped onto a copper mesh covered with a carbon film. After waiting for 1 min, the remaining liquid was dried using a filter paper. The particles were stained for 1 min with 1% phosphotungstate. The excessive liquid was absorbed by the filter paper and dried naturally, and morphology of the particles was observed by TEM (80 kV).

Experimental design

Single-factor experiments

Single-factor experiments were applied to determine the appropriate range of variables before response surface optimization. Four independent variables were examined in different ranges (Table 1): 10–80 MPa homogenization pressure, 1–7 cycles in a homogenizer, 2–5% concentration of emulsifier, and 5–25% oil concentration. In addition, effects of variables on the particle size and stability of nanoemulsions were determined as described in Sections 2.4 and 2.5.

Table 1. Processing variables used to run experiments.

Processing variables Levels
Homogenization pressure (MPa) 10 20 40 60 80
Homogenization cycles 1 2 3 5 7
Emulsifier concentration (%) 2.0 2.5 3.0 4.0 5.0
Oil concentration (%) 5 10 15 20 25

Response surface experiments

Central Composite Design (CCD) was selected as the experimental RSM design for optimizing AST nanoemulsion formulations. The experimental ranges, –α, –1, 0, +1 and +α, were chosen taking into account the results obtained from single-factor experiments, which are summarized in Table 2. The response variables were stability, particle size and PDI of nanoemulsions. All experiments were executed in a random order. The relationship between coded and uncoded values is given by Equation (1):

Y0=y0yΔy0, 1

Table 2. Coded and uncoded independent variables used in response surface methodology design.

Independent variable Symbol Coded levels
–α –1 0 +1
Homogenization pressure (MPa) X1 40 50 60 70 80
Homogenization cycles X2 5 6 7 8 9
Emulsifier concentration (%) X3 3.0 3.5 4.0 4.5 5.0
Oil concentration (%) X4 10.0 12.5 15.0 17.5 20.0

where Y0 and y0 represent coded and actual values of independent variables, respectively. ∆y0 indicates step change whereas ‘y’ is the central value. Specific equations for homogenization pressure (X1), homogenization cycles (X2), emulsifier concentration (X3), and oil concentration (X4) are as follows:

y=P6001002y2=C71, 2
y3=E40.5, 3
y4=O52.54

where P, C, E, and O represent homogenization pressure (MPa), homogenization cycles, emulsifier concentration (%), and oil concentration (%), respectively.

A second-order polynomial equation was used to express the stability (Y1), particle size (Y2) and PDI (Y3) of nanoemulsions as a function of independent variables as follows:

Yi=β0+β1X1+β2X2+β3X3+β4X4+β11X21+β22X22+β33X23+β44X24+β12X1X2+β13X1X3+β14X1X4+β23X2X3+β24X2X4+β34X3X4,  5

where Yi represents the response values, β0 is a constant, and βi, βii, and βij indicate the linear, quadratic, and interactive coefficients, respectively. The coefficients of the equation were determined using Design expert software version 10.0.7.

Storage stability of nanoemulsions

The LYCRPLs–AST nanoemulsions were prepared according to the optimal conditions obtained from the response surface optimization experiments. The storage temperature was controlled at 5°C, 25°C and 55°C for 28 days. Particle size, PDI and zeta-potential of nanoemulsions were measured at scheduled periods (every 7 days). The methods for determination of particle size, PDI and zeta-potential are described in Section 2.4.

Statistical analysis

The experimental data were analyzed by multiple regression to fit the second-order polynomial equation for independent variables. The significant differences between these independent variables were tested by analysis of variance (ANOVA). The contour plots and response surface plots were created using Design expert software (version 10.0.7) to visualize the influence of independent variables on response variables. Each experiment was performed in triplicate.

Results and Discussion

Single-factor experiments

The effects of homogenization pressure on the particle size and stability of nanoemulsions are shown in Figures 2A and 3A. The particle size of nanoemulsions decreased as the homogenization pressure increased, which is consistent with the stability results. A possible explanation could be that increasing the homogenization pressure results in enhancement of shear force and action strength, which makes nanoemulsions more uniform (Floury et al., 2003). However, the internal temperature of the instrument increases when in operation as the homogenization pressure increases (when the pressure is higher than 60 MPa), which might result in the deterioration of nanoemulsions. Therefore, a homogenization pressure of 60 MPa was selected as the central point to carry out the response surface optimization test. The fixed variables were five homogenization cycles, 3.0% emulsifier concentration and 10% oil concentration.

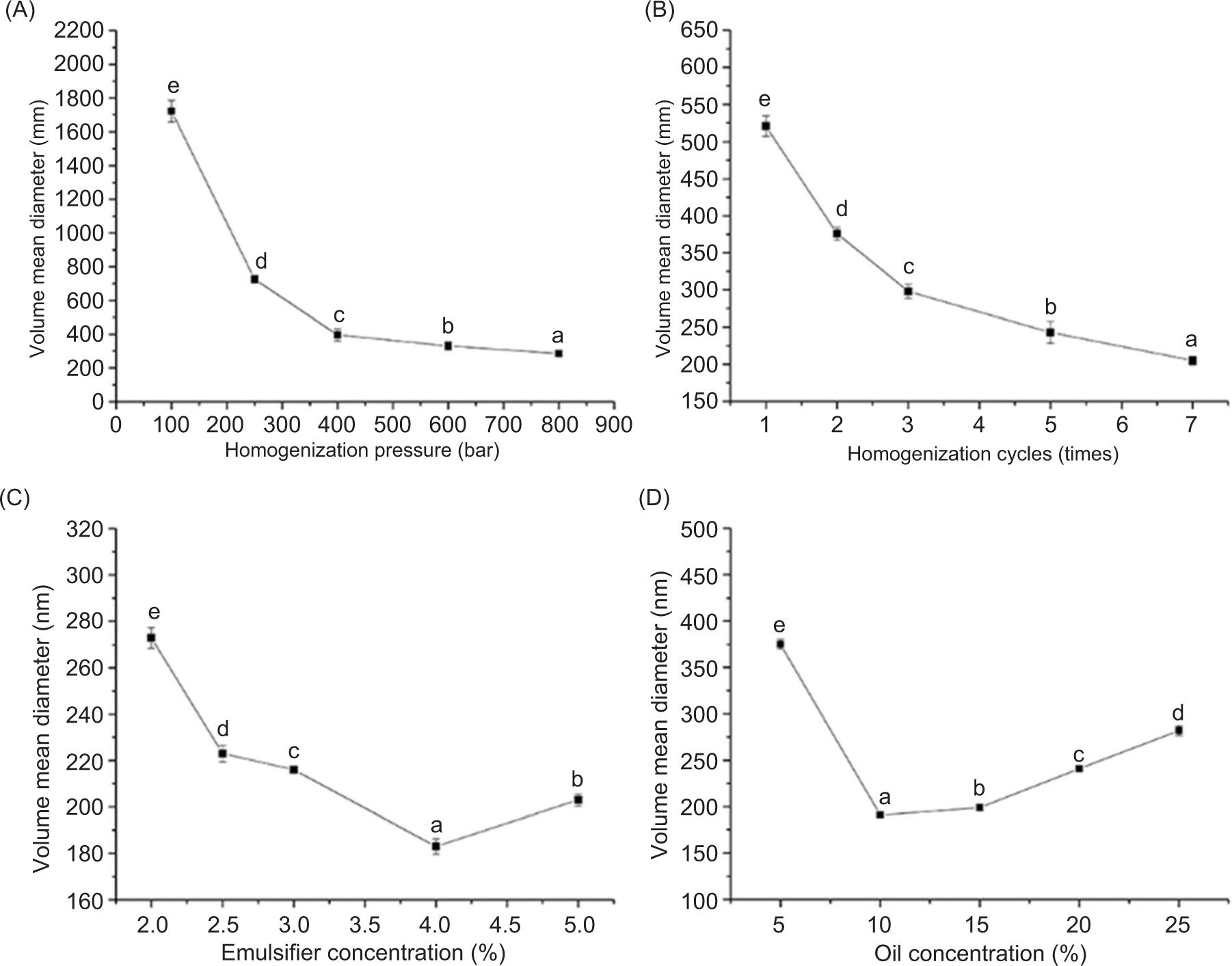

Figure 2. Effects of (A) homogenization pressure, (B) homogenization cycles, (C) emulsifier concentration and (D) oil concentration on the particle size of AST nanoemulsions.

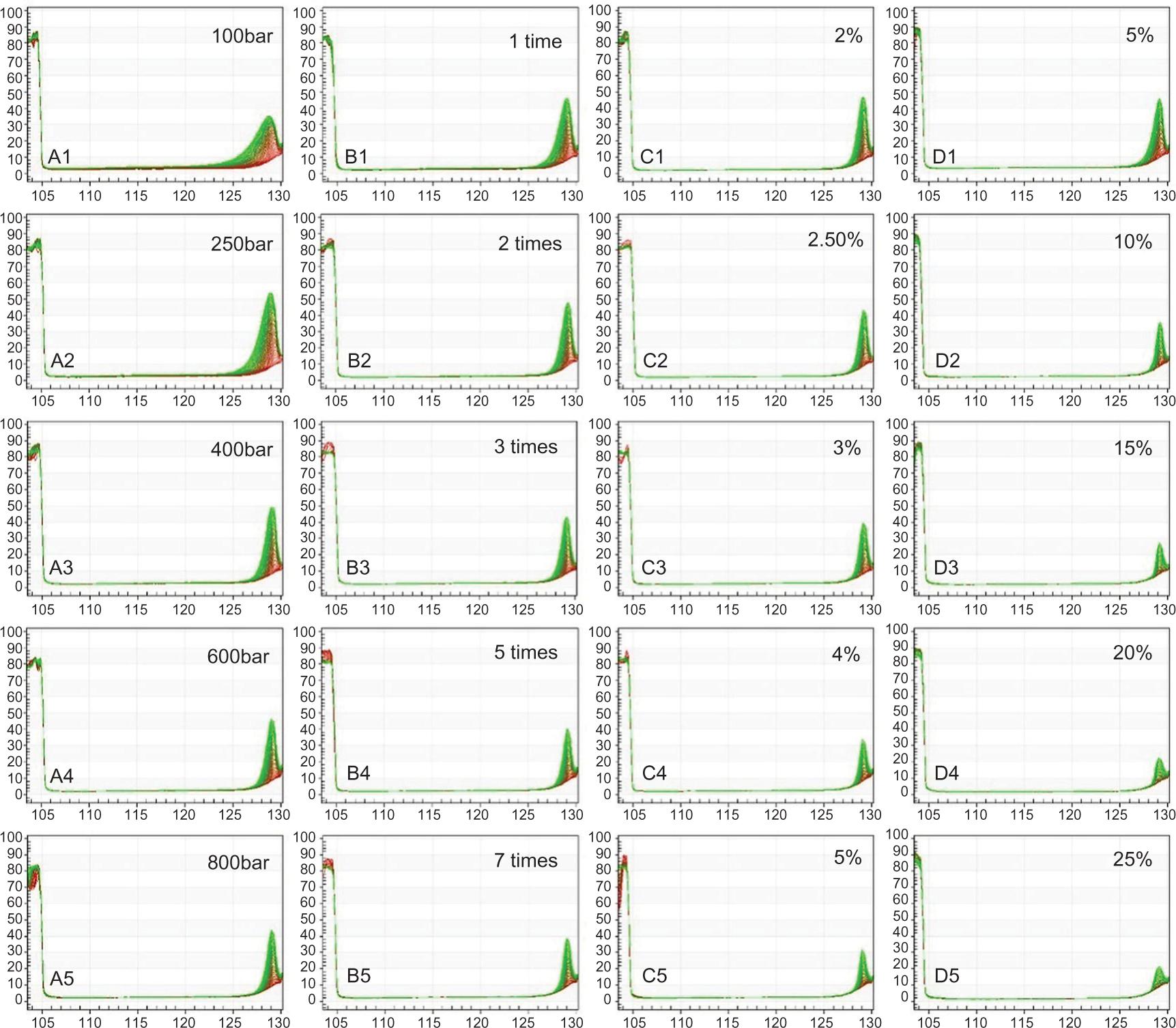

Figure 3. (A1–A5) Effects of homogenization pressure, (B1–B5) homogenization cycles, (C1–C5) emulsifier concentration, and (D1–D5) oil concentration on the stability of AST nanoemulsions.

Nanoemulsions display lower particle size and better stability as the number of homogenization cycles increases (Figures 2B and 3B), which agrees with the effects of homogenization pressure on nanoemulsions. This phenomenon could be explained as a better combination of water phase with oil phase in emulsions due to the extension of homogenization time. Thus, seven homogenization cycles were selected as the central point in the following optimization experiments. The fixed variables were homogenization pressure: 60 MPa, emulsifier concentration: 3.0% and oil concentration: 10%.

The effects of emulsifier concentration on particle size and stability of nanoemulsions are shown in Figures 2C and 3C. The particle size of nanoemulsions decreased with increase in the concentration of LYCRPLs with emulsifier concentration in the range of 2.0–4.0%. The particle size reached the lowest value if the LYCRPLs’ content was 4.0%, and subsequently increased significantly (P < 0.05). This trend may be associated with the higher concentrations of emulsifier, which contribute better surface coverage of particles in nanoemulsions (Pola et al., 2019). Meanwhile, there was no significant difference (P > 0.05) in the effect of emulsifier concentration on the stability of emulsion when the emulsifier concentration was 4%. This phenomenon has been reported in another study (Llinares et al., 2018). As mentioned previously, an emulsifier concentration of 4% was selected as the central point. The fixed variables were 60 MPa homogenization pressure, five homogenization cycles, and 10% oil concentration.

As the proportion of oil phase increased gradually, the particle size of nanoemulsions at first decreased but increased subsequently, with gradual increase in the stability of nanoemulsions (Figures 2D and 3D). This phenomenon is explained by the fact that increase in oil concentration reduces the surface tension of emulsion but enhances its stability (Alba et al., 2021). Nevertheless, higher concentration of oil requires more emulsifier. When the proportion of oil phase increases continuously, the fixed emulsifier concentration is not enough to cover the oil droplet surface, which finally increases the particle size of nanoemulsions (Cha et al., 2019). Therefore, an oil concentration of 15% was selected as the central point for further response to surface experiments. The fixed variables were 60 MPa homogenization pressure, five homogenization cycles, and an emulsifier concentration of 3%.

Fitting the model

The stability, particle size, and PDI values of nanoemulsions obtained from the experiment and their predicted values are given in Table 3. The predicted values agreed well with the data obtained from the response surface design experiment. The experimental data were used to calculate the coefficients of quadratic polynomial equation and to predict the stability, particle size, and PDI values of nanoemulsions.

Table 3. Predicted and experimental values of nanoemulsion’s stability, particle size and polymer dispersity index obtained from the central composite experimental design.

Std Run P (MPa) C (cycles) E (%) O (%) Stability of emulsion Particle size (nm) PDI
Experimental Predicted Experimental Predicted Experimental Predicted
1 5 50 6 3.5 12.5 0.102 0.099 301.10 298.12 0.412 0.358
2 25 70 6 3.5 12.5 0.064 0.060 240.50 244.74 0.273 0.276
3 16 50 8 3.5 12.5 0.072 0.078 264.60 269.29 0.438 0.478
4 13 70 8 3.5 12.5 0.058 0.051 239.40 237.74 0.514 0.443
5 11 50 6 4.5 12.5 0.102 0.102 298.00 297.43 0.569 0.543
6 1 70 6 4.5 12.5 0.057 0.054 231.30 228.27 0.413 0.421
7 28 50 8 4.5 12.5 0.100 0.095 296.60 292.27 0.654 0.639
8 26 70 8 4.5 12.5 0.054 0.060 239.90 244.94 0.512 0.564
9 27 50 6 3.5 17.5 0.087 0.080 323.50 322.58 0.907 0.866
10 19 70 6 3.5 17.5 0.066 0.069 313.90 309.92 0.951 0.957
11 12 50 8 3.5 17.5 0.041 0.042 258.70 253.42 0.628 0.611
12 14 70 8 3.5 17.5 0.045 0.045 257.90 262.59 0.712 0.749
13 6 50 6 4.5 17.5 0.057 0.062 306.60 299.95 0.476 0.538
14 21 70 6 4.5 17.5 0.049 0.042 272.10 271.53 0.618 0.588
15 15 50 8 4.5 17.5 0.035 0.039 254.60 254.48 0.251 0.259
16 17 70 8 4.5 17.5 0.032 0.033 253.20 247.87 0.311 0.356
17 23 40 7 4.0 15.0 0.094 0.092 293.50 299.49 0.523 0.546
18 24 80 7 4.0 15.0 0.041 0.046 241.30 239.50 0.586 0.562
19 20 60 5 4.0 15.0 0.060 0.067 294.00 299.14 0.373 0.410
20 22 60 9 4.0 15.0 0.041 0.036 247.60 246.65 0.338 0.299
21 8 60 7 3.0 15.0 0.059 0.063 275.30 273.80 0.720 0.769
22 18 60 7 5.0 15.0 0.055 0.054 252.70 258.39 0.611 0.561
23 3 60 7 4.0 10.0 0.094 0.097 264.40 261.60 0.405 0.438
24 30 60 7 4.0 20.0 0.051 0.050 282.00 288.99 0.773 0.739
25 2 60 7 4.0 15.0 0.055 0.053 247.30 247.50 0.388 0.354
26 10 60 7 4.0 15.0 0.048 0.053 245.00 247.50 0.308 0.354
27 9 60 7 4.0 15.0 0.052 0.053 243.60 247.50 0.373 0.354
28 7 60 7 4.0 15.0 0.054 0.053 251.70 247.50 0.413 0.354
29 4 60 7 4.0 15.0 0.057 0.053 247.70 247.50 0.356 0.354
30 29 60 7 4.0 15.0 0.049 0.053 249.70 247.50 0.284 0.354

P: homogenization pressure; C: homogenization cycles; E: emulsifier concentration; O: oil concentration.

ANOVA showed that the experimental data could be well expressed by a quadratic polynomial model. The retention coefficients (R2) of emulsion stability (Y1), particle size (Y2) and PDI (Y3) were 0.9561, 0.9768, and 0.9523, respectively (Table 3). The lack of fit was not significant (P < 0.05) compared to the pure error of all variables, which indicates that the experimental model is statistically accurate (Gunst, 2008). In this study, R2 is close to unity. This implies that the quadratic polynomial model obtained by using the response surface experimental design was sufficient to describe the influence of the independent variables studied on response variables. This shows that the model fits the experimental findings well. The analysis of variance determines the significant level of quadratic polynomial model coefficients. The smaller P-value and larger F-value show that the independent variable has a higher significant effect on response variables (Mehmood et al., 2018).

Effect of independent variables on response variables

Effects of independent variables on nanoemulsion’s stability, particle size and PDI are summarized in Table 3. Regression coefficients of independent variables are given in Table 4.

Table 4. Regression coefficient values of different responses for preparation of nanoemulsion by using the response surface methodology.

Variablesa Stability of emulsion Particle size (nm) PDI
Regression coefficient F-value P-value Regression coefficient F-value P-value Regression coefficient F-value P-value
a0 0.053     247.50     0.35
Linear
a1 –0.0115 93.01 <0.0001 –15.00 181.35 <0.0001 0.004 0.12 0.7328
a2 –0.0077 41.49 <0.0001 –13.12 138.83 <0.0001 –0.028 6.00 0.0270
a3 –0.0024 3.94 0.0658 –3.85 11.98 0.0035 –0.052 20.92 0.0004
a4 –0.0118 97.09 <0.0001 6.85 37.79 <0.0001 0.075 43.69 <0.0001
Quadric
a11 0.0041 13.24 0.0024 5.50 27.87 <0.0001 0.050 22.08 0.0003
a22 –0.0002 0.03 0.8764 6.35 37.15 <0.0001 0.00026 0.0006 0.9808
a33 0.0014 1.67 0.2154 4.65 19.92 0.0005 0.078 53.38 <0.0001
a44 0.0053 22.61 0.0003 6.95 44.50 <0.0001 0.059 30.35 <0.0001
Interaction
a12 0.0033 5.11 0.0391 5.46 16.01 0.0012 0.012 0.70 0.4148
a13 –0.0021 1.98 0.1798 -3.94 8.36 0.0112 -0.010 0.52 0.4814
a14 0.0072 24.05 0.0002 10.18 55.73 <0.0001 0.043 9.60 0.0073
a23 0.0037 6.33 0.0237 5.92 18.83 0.0006 –0.006 0.19 0.6697
a24 –0.0041 7.68 0.0142 –10.08 54.64 <0.0001 –0.094 45.32 <0.0001
a34 –0.0052 12.53 0.0030 –5.48 16.15 0.0011 –0.128 84.78 <0.0001
R2 0.9561     0.9768     0.9523

Note: aa0 is a constant, and ai, aii, and aij are the linear, quadratic, and interactive coefficients of quadratic polynomial equations, respectively.

Stability of Nanoemulsion

The stability of nanoemulsions was mainly dependent on oil concentration, as it had a significant effect on nanoemulsion’s stability at linear (P < 0.001), quadratic (P < 0.001), and interaction (P < 0.05) levels (Table 4). Other factors that contributed significantly to nanoemulsion’s stability were the linear terms of homogenization pressure (P < 0.001) and homogenization cycles (P < 0.001), and quadratic terms (P < 0.01) and interaction terms of homogenization pressure (P < 0.001) (Table 4).

The interactive effects of emulsifier concentration and oil concentration on nanoemulsion’s stability are shown in Figure 4B. Both independent variables exert linear effects on nanoemulsion’s stability. Up to a certain level, the stability of nanoemulsions increased with increase in both oil and emulsifier concentrations. This trend was observed since the surface tension of the emulsion can be enhanced with increase in oil concentration (Homayoonfal et al., 2014). The effect of oil concentration is to increase the packing of emulsion droplets, reducing their mobility and hence favoring gravitational separation. These results suggest that both emulsifier and oil concentrations had positive effects on stability. The combined effects of homogenization pressure and oil concentration on the stability of nanoemulsions are shown in Figure 4B, which indicates that homogenization pressure exerts a linear effect while oil concentration had a linear and quadratic effects on the stability of nanoemulsion. There was a downregulation of homogenization pressure and oil concentration with decrease in the stability of nanoemulsion. A possible reason for this decrease is that the smaller droplets were made by higher homogenization pressure. This change can more effectively reduce the rate of gravitational separation, and the droplet velocity increases with the square of diameter (Rao and McClements, 2012).

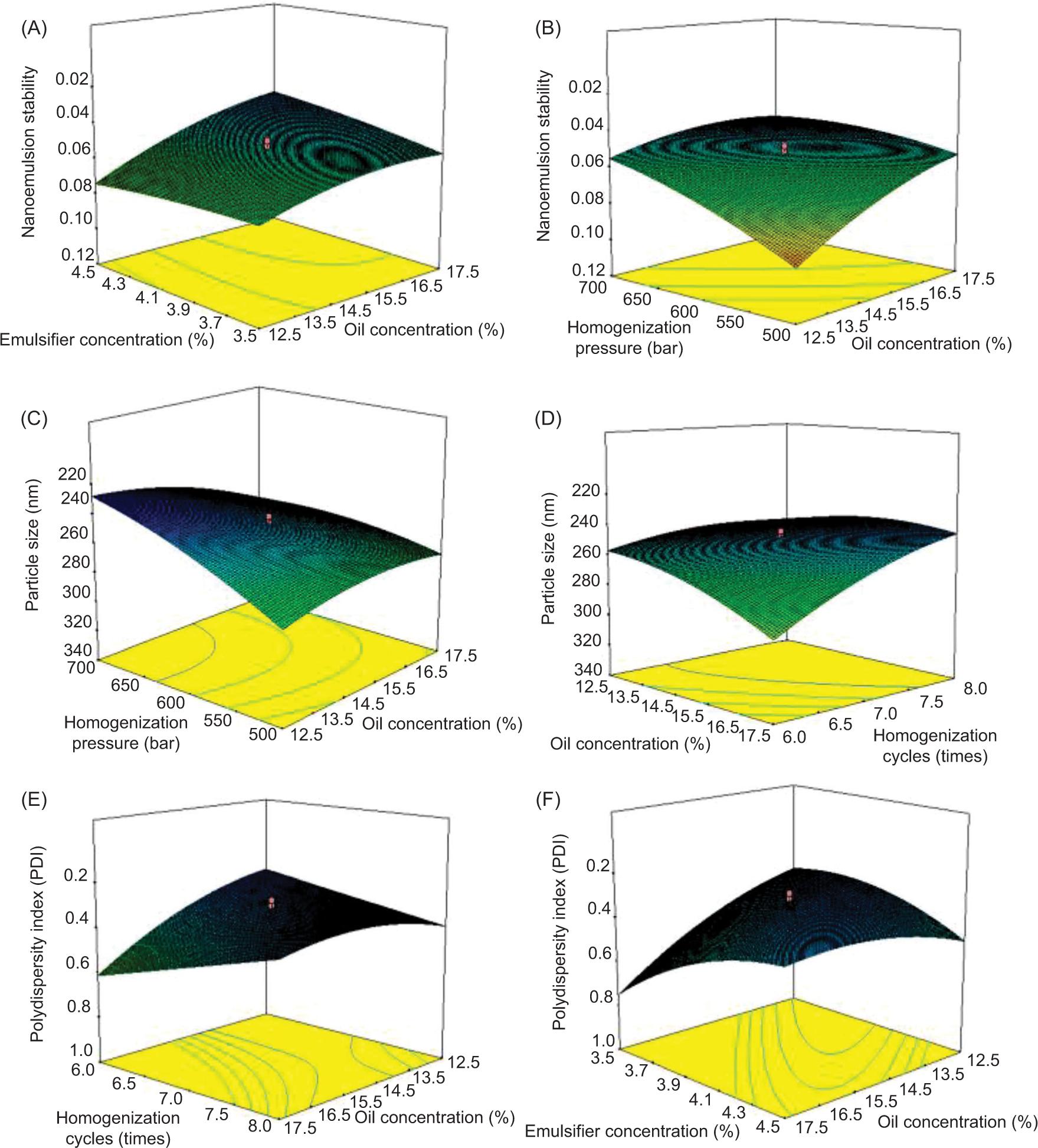

Figure 4. Response surface plots of (A) nanoemulsions stability versus emulsifier concentration (%) and oil concentration (%); (B) nanoemulsions stability versus homogenization pressure (MPa) and oil concentration (%); (C) particle size (nm) versus homogenization pressure (MPa) and oil concentration (%); (d) particle size (nm) versus oil concentration (%) and homogenization cycles; (E) PDI of nanoemulsions versus homogenization cycles and oil concentration (%); and (F) PDI of nanoemulsions versus emulsifier concentration (%) and oil concentration (%).

Particle size

Considering the particle size, homogenization pressure had a significant effect on the particle size of nanoemulsions at linear (P < 0.001), quadratic (P < 0.001) and interaction (P < 0.001) levels (Table 4). Other factors that significantly contribute to particle size were linear effects of homogenization cycles (P < 0.001), emulsifier concentration (P < 0.01) and oil concentration (P < 0.001); quadratic effects of homogenization cycles (P < 0.001), emulsifier concentration (P < 0.001) and oil concentration (P < 0.001)l and interactive effects of homogenization cycles (P < 0.001) and oil concentration (P < 0.001) (Table 4).

A contour plot in Figure 4C illustrates the particle size as a function of oil concentration and homogenization pressure. Both of these independent variables had a linear and quadratic effects on particle size. At lower oil concentration, particle size was reduced with increasing homogenization pressure. This decrease was due to effect of higher homogenization pressure on shear force and other fluid-mechanical stresses, resulting in the reduction of droplet size (Floury et al., 2003). Figure 4D describes the interactive effect of homogenization cycles and oil concentration on particle size, which explained the linear effects of both variables on particle size. Particle size of nanoemulsions reduced with the increased cycles of homogenization. Nonetheless, higher concentration of oil resulted in increase in particle size. Increase of homogenization cycles means extension of homogenization time. This trend was consistent with the previous findings that the particle size decreased with strong shear force (Yuan et al., 2008).

Polydispersity index

Polydispersity index is used to measure particle size distribution of emulsion, which evaluates the quality of emulsion (Shi et al., 2021). PDI of nanoemulsions was mainly dependent on oil concentration, which had significant effects on PDI at linear (P < 0.001), quadratic (P < 0.001) and interaction (P < 0.01) levels. Other factors that significantly affected PDI were linear effects of homogenization cycles (P < 0.05) and emulsifier concentration (P < 0.001); quadratic effects of homogenization pressure (P < 0.001) and emulsifier concentration (P < 0.001); and interaction effects of homogenization cycles (P < 0.001) and emulsifier concentration (P < 0.001).

At higher homogenization cycles, a decrease in PDI was observed with increase in oil concentration (as shown in Figure 4E). This decrease in PDI was attributed to strong shear force, which resulted in smaller particle size and higher homogenization cycles, and this way could make both water and oil phase mix thoroughly to form uniform distribution nanoemulsions (Kim et al., 2012). Figure 4F shows the interactive effect of emulsifier and oil concentration on PDI. A decrease in PDI was observed at higher emulsifier and oil concentrations. The reason could be that the emulsifier reduced surface tension in oil–water interface and at the same time improved the bearing capacity of oil phase. This resulted in consistent droplet size of nanoemulsions (Mehmood, 2015).

Optimization of conditions for preparing nanoemulsions

The optimum conditions for preparing nanoemulsions are as follows: homogenization pressure: 60 MPa; nine homogenization cycles; emulsifier concentration: 4.677%; and oil concentration: 20%. Under these conditions, the predicted values of nanoemulsions’ stability, particle size and PDI are 0.013, 252.3 nm and 0.170, respectively.

Verification of results

Considering the feasibility of practical operation, the above-mentioned processing conditions were applied in three experiments with some modifications: homogenization pressure: 60 MPa; nine homogenization cycles; emulsifier concentration: 4.7%; and oil concentration: 20%. Under the optimum conditions, the experimental values of nanoemulsions’ stability, particle size and PDI were 0.018 ± 0.0016, 247 ± 4.5 nm and 0.215 ± 0.019, respectively. The result revealed that the model was satisfactory and accurate.

Characterization of AST nanoemulsions

Characterization was measured under the optimal preparing conditions of AST nanoemulsions. Figure 5A displays the particle size distribution of nanoemulsions. The PDI value described that AST nanoemulsions had a narrow particle size distribution (Ma and Mu, 2016). Figure 5B shows the TEM observation of the droplets of AST nanoemulsions, and it was observed that nanoemulsion droplets were more or less spherical in shape and nonaggregated, which was consistent with the findings of a previous study (Li et al., 2017).

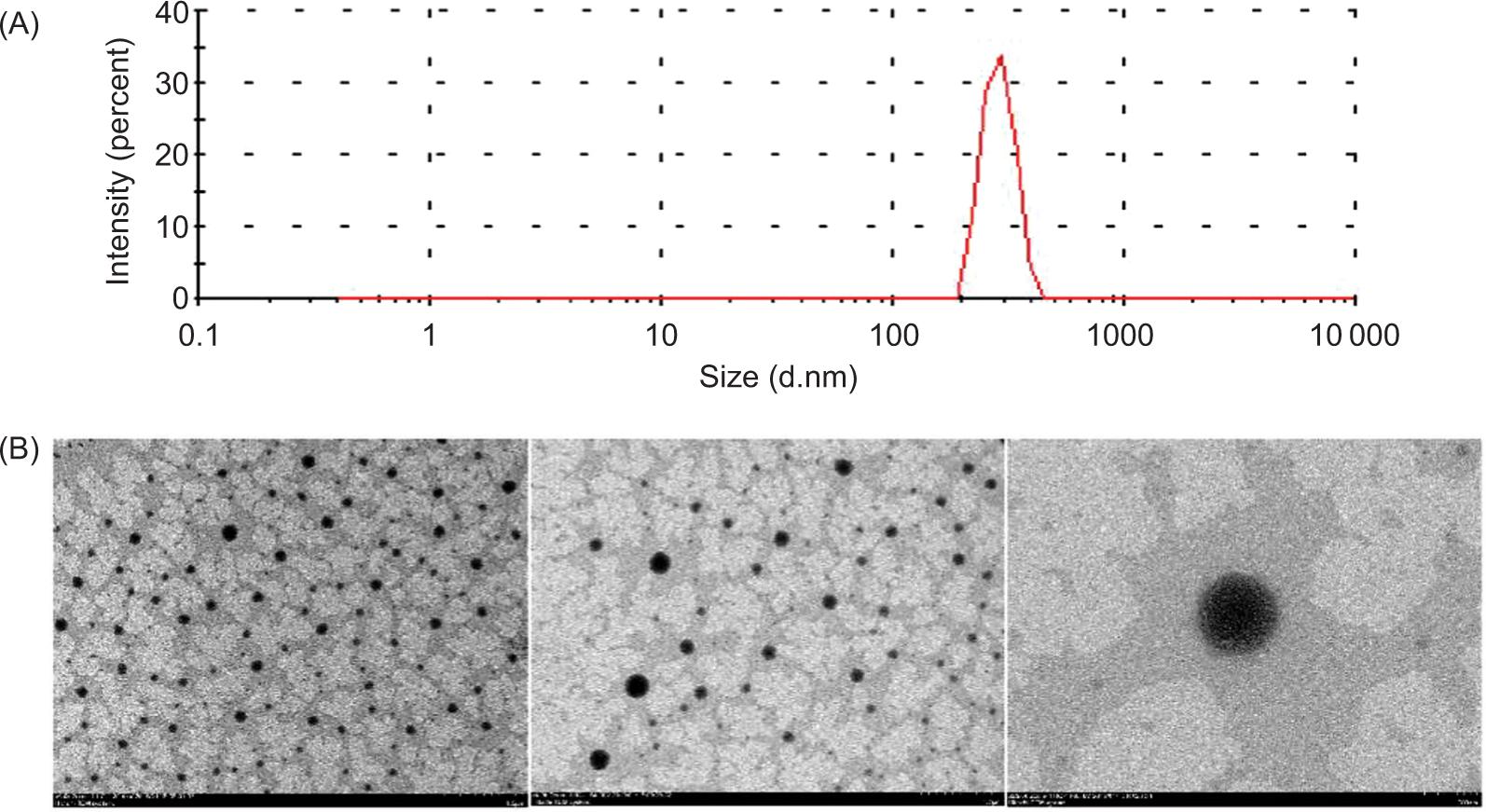

Figure 5. (A) Particle size distribution of AST nanoemulsions with optimal preparing conditions. (B) Transmission electron microscope (TEM) observations of droplets of AST nanoemulsions under optimal preparing conditions.

Storage stability of AST nanoemulsions

During food processing, storage temperature and time are crucial factors for evaluating quality of nanoemulsions; hence, we monitored the particle size, PDI and zeta-potential values of nanoemulsions at scheduled time intervals during 4-week storage period to evaluate their storage stability. As depicted in Figures 6A and 6B, regardless of temperature, the particle size and PDI of nanoemulsions showed an increasing trend. It is considered that this phenomenon is related to the ripening of Ostwald (Reyes et al., 2021). With the extension of storage period, the quality of emulsion changed gradually, with continuous increase in particle size (Young and Nitin, 2019). In general, the system is considered to be relatively stable when the zeta-potential reaches 25 mV in absolute value (Chen et al., 2020). Figure 6C demonstrates that the zeta-potential values increased with the increase of storage days, and the absolute value was above 25 mV at 5°C and 25°C during storage days, which depicted that AST nanoemulsions prepared by LYCRPLs could be stable for 28 days at 5°C and 25°C, and became slightly unstable at higher temperature. This result was inconsistent with particle size and PDI.

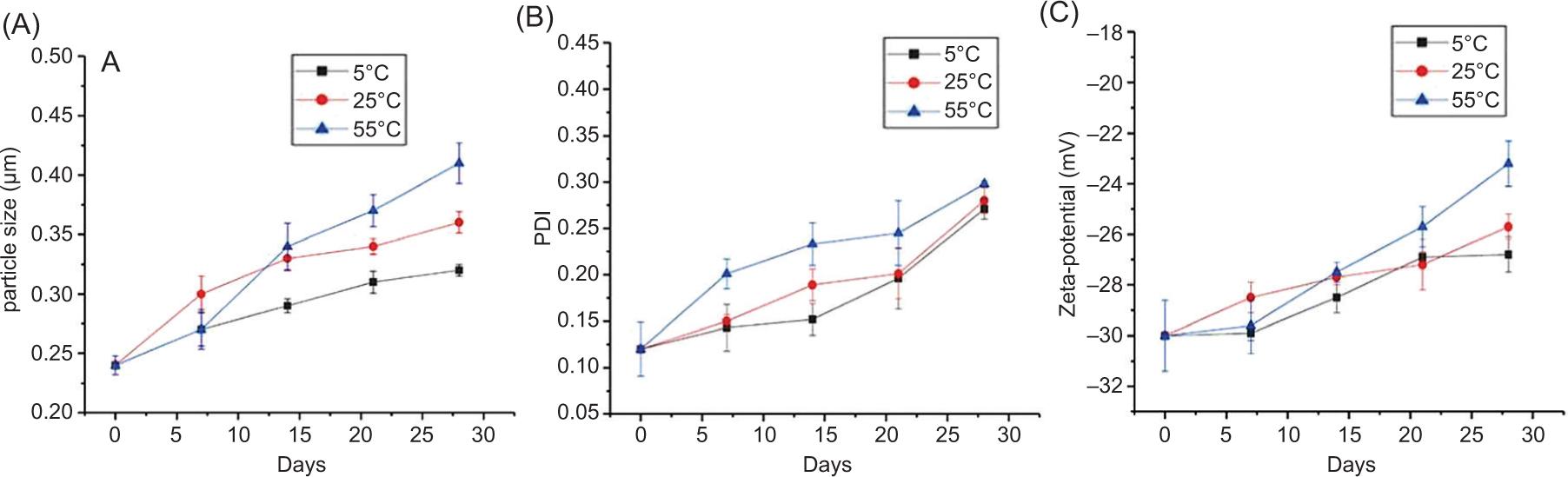

Figure 6. Changes in (A) particle size, (B) PDI and (C) zeta-potential value of AST nanoemulsions during storage.

Conclusion

In this study, AST nanoemulsions were prepared using LYCRPLs as an emulsifier. The four parameters of homogenization pressure, homogenization cycles, emulsifier concentration, and oil concentration for AST nanoemulsions prepared by LYCRPLs were optimized systematically, and droplets of nanoemulsions were characterized by TEM. LYCRPLs have good emulsifying capacity, which could be used as a potential emulsifier. Therefore, differences in the emulsifying properties of LYCRPLs and traditional commercial lecithin need further research.

Acknowledgments

This research was supported by the National Natural Science Foundation of China (31801465). It was also supported by the Outstanding Young Scientific Research Project of Fujian Agriculture and Forestry University (xjq 201808).

Author Contribution

Peng Liang provided the idea of this study and interpreted the results. Luyao Huang designed the study and drafted the manuscript. Lingyun Zhang collected test data, and Ruifen Li helped to revise the manuscript.

Conflict of Interest

The authors declare that they have no conflicts of interest concerning this article. There was no financial support, except those mentioned in the acknowledgments.
