Introduction

The term “myocardial infarction” refers to the damage to vulnerable atherosclerotic plaques or the erosion of coronary artery endothelial cells (Palasubramaniam et al., 2019). When cardiomyocytes die, they release specific proteins that trigger inflammatory responses in the myocardium (Frangogiannis, 2014). During acute myocardial infarction, cardiomyocytes can produce large amounts of reactive oxygen species (ROS), which significantly contribute to oxidative stress (Zheng et al., 2022). In recent years, it has been discovered that ROS not only cause oxidative stress but also act as an important inflammatory signal, playing a key role in activating the NLR-family pyrin domain-containing protein 3 (NLRP3) inflammasome (Wang et al., 2020). In the absence of stimulation, thioredoxin-interacting protein (TXNIP) binds to the thioredoxin (TRX), inhibiting its activity (Yoshihara et al., 2024). When cells are stimulated by external signals and mitochondrial ROS release is increased, this complex dissociates. TXNIP then binds to NLRP3 inflammasome, activating the NLRP3 inflammasome, which leads to an increase in cytokine secretion. This activation triggers downstream inflammatory responses that results in pyroptosis and ultimately cause cardiomyocyte injury (Cheng et al., 2020; Zhao et al., 2023).

Kaempferol-3-O-rutinoside (KR), commonly present in green tea, exhibits significant pharmacological activities, including anti-liver injury, anti-cerebral ischemia/reperfusion injury, anti-multi-infarct dementia, anti-hyperglycemia, and anti-coronavirus 2019 (COVID-19) (Dubey and Dubey, 2021; Hua et al., 2018; Petpiroon et al., 2015; Wang et al., 2015). Previous studies have found that KR is the most abundant flavonoid glycoside in Chinese traditional tea, Lu’an GuaPian tea (Hua et al., 2018). The flavonoid glycoside derivatives in Lu’an GuaPian tea showed good inhibition of lipid accumulation in 3T3-L1 adipocytes (Bai et al., 2017). Additionally, these derivatives exhibited strong inhibitory effects on α-glucosidase and α-amylase, among which KR showed a particularly strong inhibition of α-amylase through hydrogen-bonding interactions (Hua et al., 2018). KR has demonstrated obvious anti-inflammatory effects, particularly in protecting H9c2 cardiomyocytes from lipopolysaccharide (LPS)-induced inflammatory injury. It significantly increases cell survival and downregulates the protein expression levels of toll-like receptor 4 (TLR4), myeloid differentiation primary response 88 (MyD88), and nuclear factor kappa-B (NF-κB) (Hua et al., 2021). Recent studies have also shown that KR had good therapeutic effects on rats in a model of ventricular remodeling (VR) following acute myocardial infarction (AMI). It significantly improves cardiac function and hemodynamic indexes, reduces pathological changes and myocardial fibrosis, and inhibits the overexpression of NLRR3, cysteinyl aspartate specific proteinase-1 (Caspase-1), and gasdermin D (GSDMD) (Hua et al., 2022). The NLRP3 signaling pathway is closely related to its upstream ROS/TXNIP pathway (Zhu et al., 2024). KR regulates inflammation and inhibits cellular pyroptosis by inhibiting the ROS/TXNIP signaling pathway. However, the effect of KR on VR after AMI is unclear. The present study aims to further investigate this mechanism.

Molecular docking is a method of drug design that involves characterizing the receptor and the interaction mode between the receptor and the drug. It can also be used to predict the possible targets of drugs and to clarify their mechanism of action (Guedes et al., 2014). In recent years, molecular docking has become a valuable technique for studying the mechanisms of traditional Chinese medicine combinations (Zhou et al., 2023). Combining molecular docking with experimental validation can better elucidate the mechanisms by which traditional Chinese medicines act against diseases.

In this study, we used molecular docking to predict the binding affinity of KR and TXNIP. We then conducted modern morphology and molecular biology experiments to observe the effects of KR on the expression of key proteins and genes in the model of cardiomyocyte pyroptosis mediated by the ROS/TXNIP/NLRP3 pathway. Our aim was to define the mechanism through which KR prevents and treats cardiomyocyte pyroptosis, providing experimental evidence for the clinical application and popularization of natural products.

Materials and Methods

Cell

The H9c2 cell line was purchased from Procell Life Technology Co. Ltd. (Wuhan, China).

Chemicals and regents

Kaempferol-3-O-rutinoside was purchased from Shanghai Yuanye Bio-Technology Company (Shanghai, China). Lipopolysaccharide (LPS) (L8880) was purchased from Technology Co. Ltd (Beijing, China). Adenosine triphosphate (ATP) (A832633) was purchased from Macklin Biochemical Technology Co. Ltd (Shanghai, China). Lactate dehydrogenase (LDH) (A020-2-2), malondialdehyde (MDA) (A003-1-2), total superoxide dismutase (T-SOD) (A001-1-2), catalase (CAT) (A007-1-1), and glutathione (GSH) (A006-2-1) were purchased from Nanjing Jiancheng Bioengineering Insitute (Nanjing, China). Interleukin (IL)-1β (MM-0047R2) and IL-18 (MM-0194R2) were bought from Meimian (Jiangsu, China). ROS kit (CA1410) was purchased from Solarbio Inc. Anti-TXNIP (DF7506) and anti-Cleaved-caspase-1 (AF4005) were purchased from Affinity Biosciences. Anti-TRX (ab273877) and anti-NLRP3 (ab263899) were obtained from Abcam. Penicillin-streptomycin solution (BL505A) was purchased from Biosharp (China).

Culture of H9c2 cells

H9c2 cells were cultured in DMEM medium supplemented with 10% fetal bovine serum (FBS) and 1% penicillin-streptomycin solution. The cells were maintained at 37°C, 5% CO₂, and 85%–95% relative humidity.

H9c2 cell treatment

In 6-well plates, H9c2 cells were divided into a control group, model group (10 μg/mL LPS intervention for 12 h, and 8 mM ATP intervention for 2 h), and KR group (after pretreatment of 25 μM KR for 12 h, 10 μg/mL LPS intervention for 12 h, and 8 mM ATP intervention for 2 h).

Molecular docking

The structure of KR was downloaded from PubChem (https://pubchem.ncbi.nlm.nih.gov/) which was processed by adding hydrogens and partial charges. TXNIP (PDB: 4GEI) was obtained from RCSB (https://www.rcsb.org/) (Polekhina et al., 2013). To obtain the sizes of the docking box, distances between the center and each atom along the three axes (x, y, and z) were calculated. CB-DOCK (http://clab.labshare.cn/cb-dock/) was used to predict the binding affinity of the chemical and target (Liu et al., 2020).

Determination of enzymology parameters

The LDH activity in cell supernatants was measured according to the manufacturer’s instructions. T-SOD (550 nm), MDA (532 nm), GSH (405 nm), and CAT (405 nm) activities were measured by colorimetric assay.

Detection of cellular ROS levels

H9c2 cells were inoculated into 6-well plates at 90% density, with a density of 3×10⁵ cells/well. After treatment in groups, they were mixed with 10 μM DCFH-DA and incubated in a serum-free medium for 15 min. After washing with PBS, the fluorescence intensity was observed with a fluorescence microscope (Olympus IX81, Japan).

RT-qPCR for mRNA expression

H9c2 cells were inoculated at a density of 2×10⁵ cells in 6-well plates and cultured for 24 h. The mRNA assay was conducted based on the methods described in a previous study (Yang et al., 2024). The amplification procedure includes the following: pre-denaturing at 95°C for 5 min, then denaturing at 95°C for 15 s, annealing at 60°C for 60 s, and performing 40 cycles of PCR. The melting curve is from 60°C to 95°C. The mRNA expression levels of the genes were analyzed using the 2^-ΔΔCq method with β-actin as a reference control. The primer sequence for TXNIP (Forward: 5'-CCAGACCAAAGTGCTCACTCAGAAG-3', Reverse: 5'-GAGACTCTTGCCACGCCATGATG-3'), TRX (Forward: 5'-AAGCCCTTCTTTCATTCCCTCTGTG-3', Reverse: 5'-CAGCAACATCCTGGCAGTCATCC-3'), NLRP3 (Forward: 5'-GAGCTGGACCTCAGTGACAATGC-3', Reverse: 5'-AGAACCAATGCGAGATCCTGACAAC-3'), Caspase-1 (Forward: 5'-GCACAAGACTTCTGACAGTACCTTCC-3', Reverse: 5'-GCTTGGGCACTTCAATGTGTTCATC-3'), and β-actin (Forward: 5'-CCCATCTATGAGGGTTACGC-3', Reverse: 5'-TTTAATGTCACGCACGATTTC-3') were used in the study.

Western blot for protein expression

H9c2 cells were seeded in 6-well plates at a density of 2×10⁵ cells per well and cultured for 24 h. Equal amounts of total protein were separated using 10%–12% SDS-PAGE and transferred to a PDVF membrane following protein quantification with a BCA kit. The membrane was blocked with 5% skim milk for 2 h. After blocking, the membrane was incubated with primary antibodies overnight at 4 °C following three washes with TBST solution. The protein assay was performed according to a previous study (Hua et al., 2022). TXNIP (1:1000), TRX (1:500), NLRP3 (1:1000), Cleaved-caspase-1 (1:1000), and GAPDH (1:5000) were incubated at 4°C overnight. The protein bands were photographed using the Tanon5200 imaging system (Tanon, China), and the optical density values of the bands were analyzed using ImageJ software.

ELISA for the expression of IL-1β and IL-18

IL-1β and IL-18 levels in rat serum were detected by test kits. Fluorescence was measured on a SpectraMax i3x (Molecular Devices, USA) microplate reader at 450 nm.

Statistical analysis

The data were presented as mean ± standard deviation, and statistical analysis was conducted using SPSS 26.0. One-way ANOVA was performed, and the results indicated that a P-value of less than 0.05 was considered statistically significant.

Results

Molecule docking for KR

The lower the Vina score, the stronger the binding affinity between KR and TXNIP. Verapamil had a Vina score of 5.5, while KR had a score of -6.7, indicating that the binding affinity of KR to TXNIP was higher than that of the TXNIP inhibitor. KR had a good binding affinity to TXNIP, suggesting that KR may act on TXNIP (Table 1, Figure 1), as supported by cellular experiments.

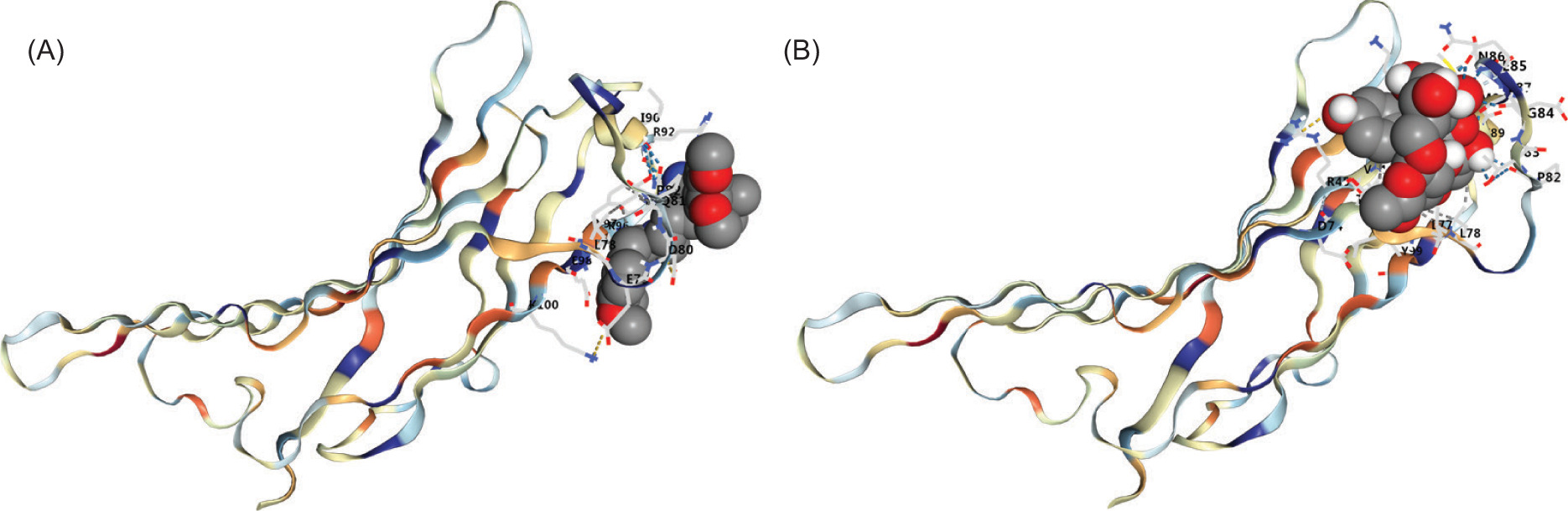

Figure 1. Docking of KR to TXNIP. (A) Verapamil (B) KR.

Effect of LGZGD on LDH activity

LDH activity was significantly higher in the model group (P<0.01), and KR could decrease the LDH activity (P<0.01) (Figure 2). The results indicated that KR intervention could effectively ameliorate the myocardial injury caused by LPS+ATP on H9c2 cells.

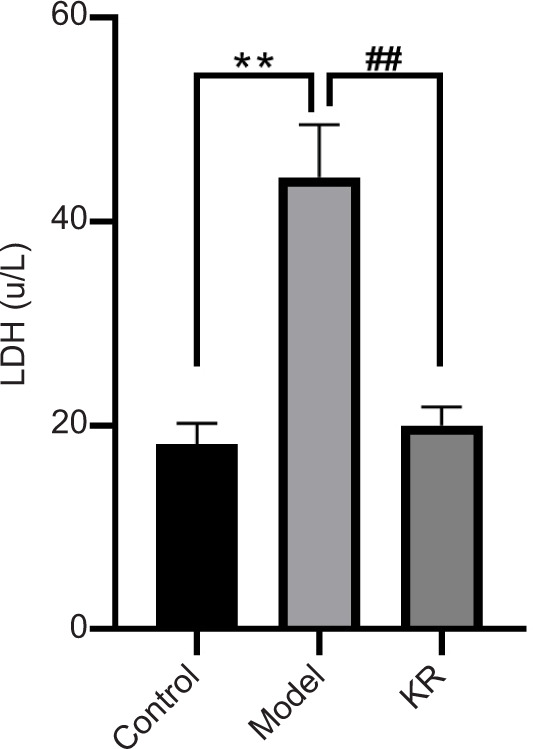

Figure 2. Effect of LGZGD on LDH activity. Compared with the control group, **P < 0.01; compared with the model group, ^##P < 0.01.

Effect of LGZGD on cellular oxidative stress

In the model group, CAT, GSH, and T-SOD activities were significantly lower, while MDA content was significantly higher (P<0.01). However, following KR intervention, these oxidative stress indicators were notably reversed (P<0.01) (Figure 3).

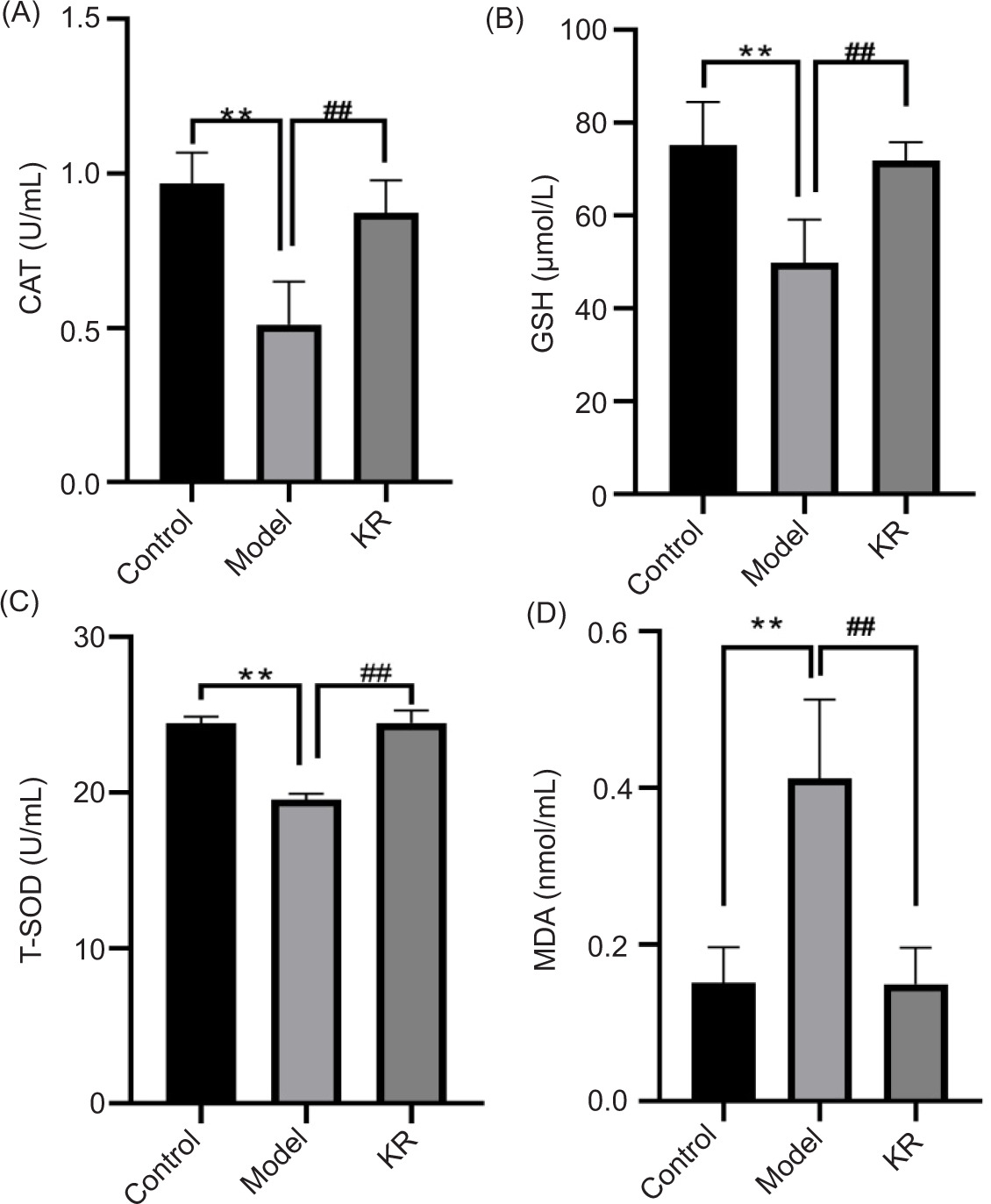

Figure 3. Effect of LGZGD on cellular oxidative stress. (A) CAT; (B) GSH; (C) T-SOD; (D) MDA. Compared with the control group, **P < 0.01; compared with the model group, ^##P < 0.01.

Effect of KR on the level of ROS

The effect of KR on ROS was assessed using a kit in H9c2 cells. Induction with LPS+ATP significantly increased ROS production in the model group (P<0.01). However, ROS production was significantly inhibited following KR intervention (P<0.01) (Figure 4).

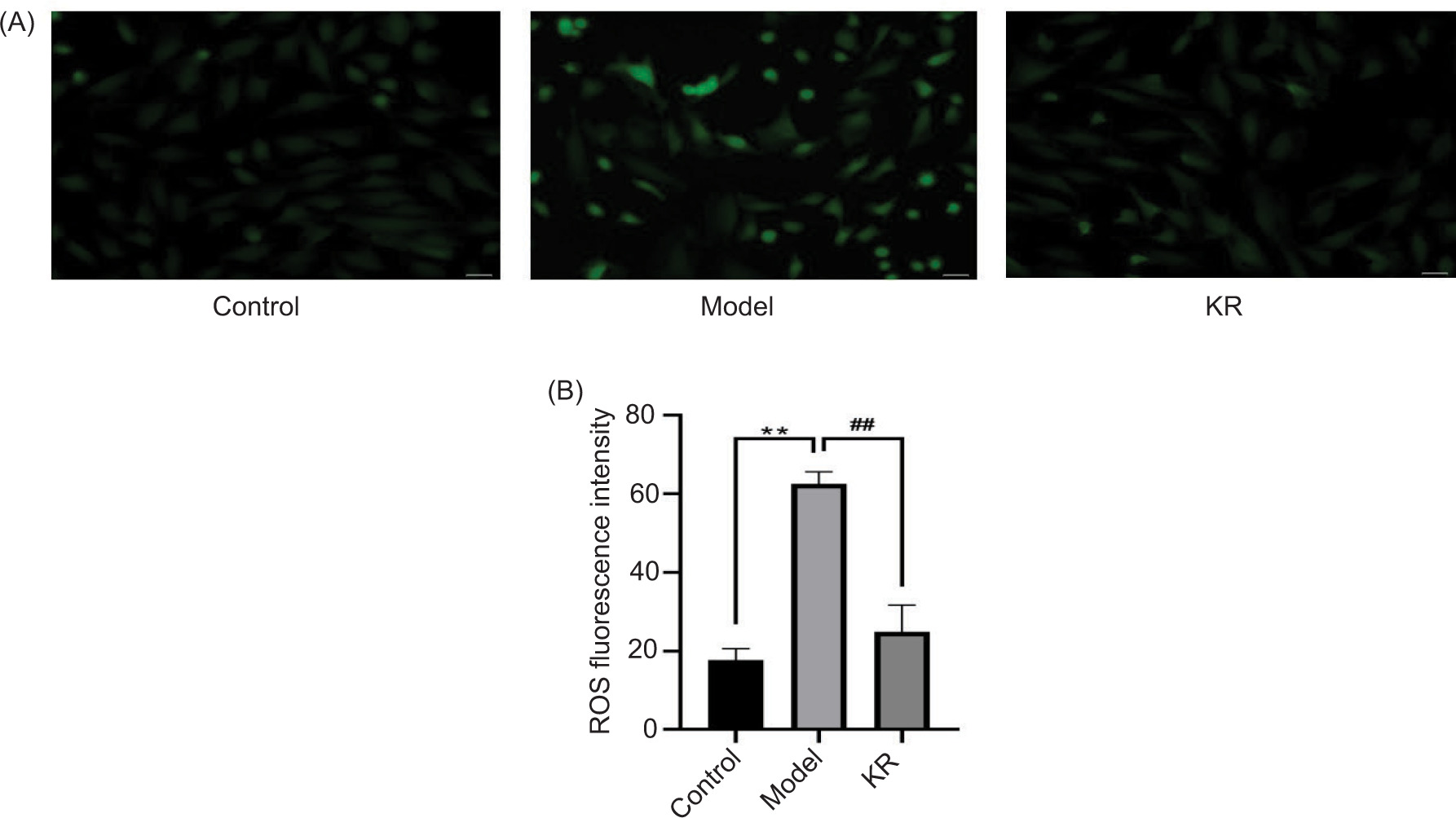

Figure 4. Effect of KR on the level of ROS. (A) Representative image (B) Quantitative analysis. Compared with the control group, **P < 0.01; compared with the model group, ^##P < 0.01.

KR inhibited the expression of key genes

In the model group, gene expression levels of TXNIP, Caspase-1, and NLRP3 were significantly increased, and TRX gene expression was significantly decreased (P<0.01). However, in the KR group, these gene expressions were significantly reduced, and TRX gene expression was significantly increased (P<0.01) (Figure 5).

Figure 5. KR inhibited the expression of key genes. (A) TXNIP; (B) TRX; (C) NLRP3; (D) Caspase-1. Compared with the control group, **P < 0.01; compared with the model group, ^##P < 0.01.

KR inhibited the expression of key proteins

In the model group, protein expression levels of TXNIP, Cleaved-caspase-1, and NLRP3 were significantly elevated, while TRX protein expression was decreased (P<0.01). After KR treatment, these protein expression levels were significantly reversed (P<0.01) (Figure 6).

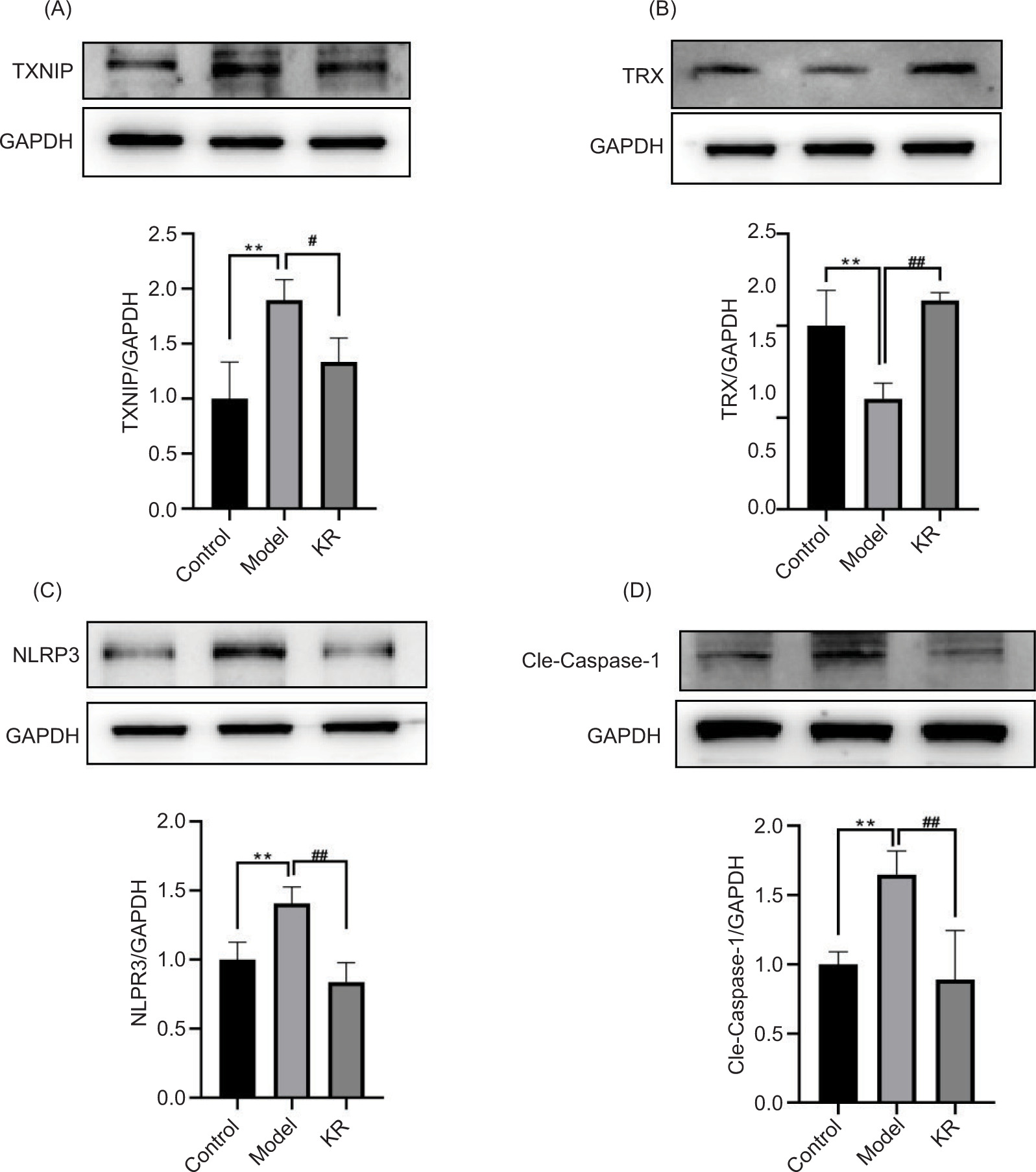

Figure 6. KR inhibited the expression of key proteins. (A) TXNIP; (B) TRX; (C) NLRP3; (D) Cleaved-caspase-1. Compared with the control group, **P < 0.01; compared with the model group, ^##P < 0.01.

KR improved IL-1β and IL-18 in myocardial injury

In the model group, the levels of IL-1β and IL-18 were significantly increased (P<0.01). In contrast, KR treatment significantly suppressed these inflammation levels (P<0.01) (Figure 7).

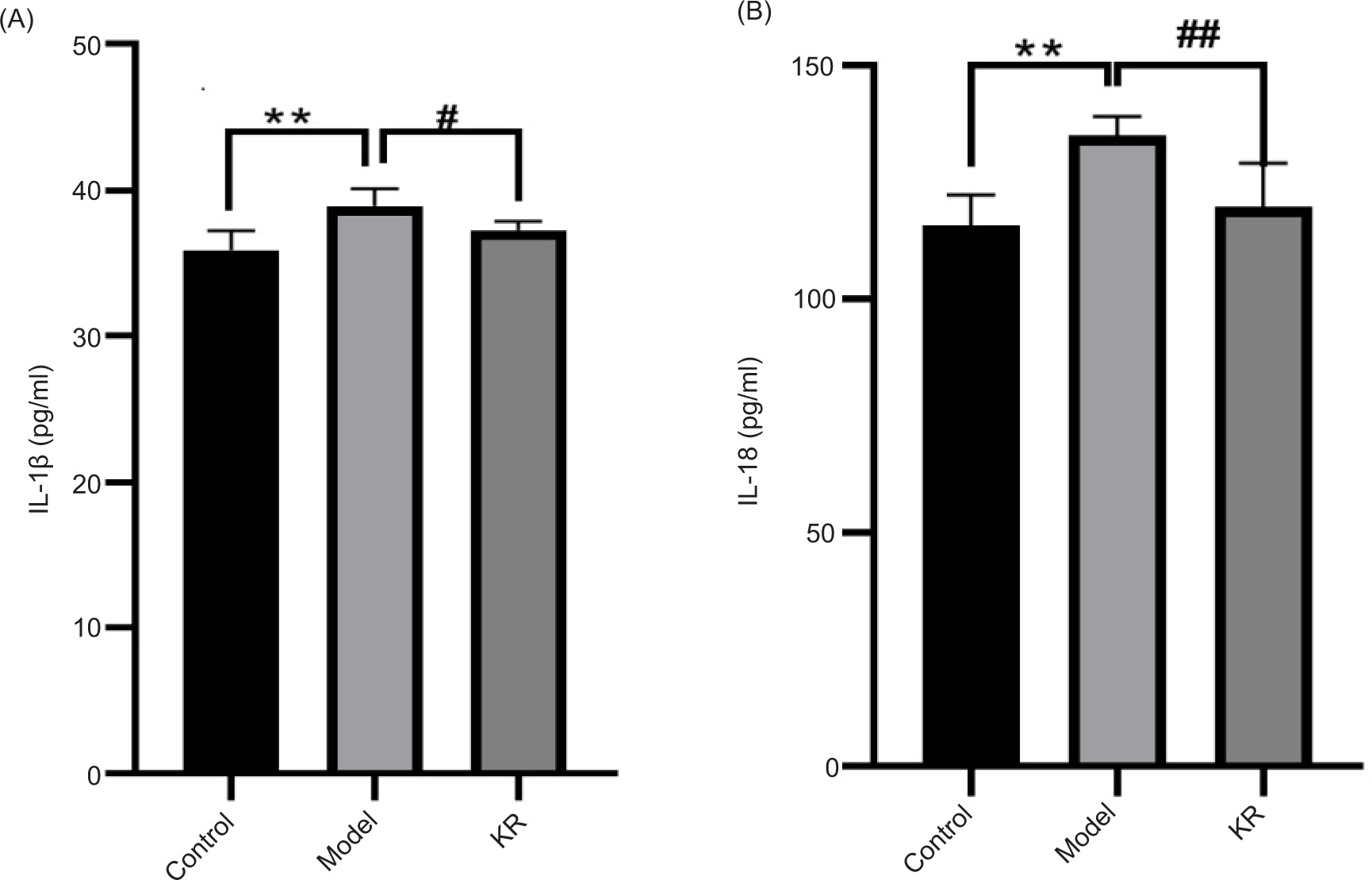

Figure 7. KR improved IL-1β and IL-18 in myocardial injury. (A) IL-1β; (B) IL-18. Compared with the control group, **P < 0.01, Compared with the model group, ^##P < 0.01.

Discussion

TXNIP is a marker associated with metabolism, oxidation, and inflammation in cardiovascular diseases (CVDs). Its overexpression is closely linked to the onset and progression of CVDs (Zhou et al., 2023). Inhibiting TXNIP is crucial for mitigating the excessive activation of downstream signaling pathways, thereby reducing myocardial cell damage (Xi et al., 2024). TXNIP also interacts with NLRP3, which activates NLRP3 inflammasome and promotes inflammatory processes, including pyroptosis (Bharti et al., 2019; Luo et al., 2022).

Pyroptosis is a form of programmed cell death characterized by the continuous swelling of cells until their membranes rupture. This process leads to the release of cellular contents and activation of a potent inflammatory cascade (de Torre-Minguela et al., 2021; Zhang et al., 2024). It is an important natural immune response, dependent on Caspase-1, and involves the release of pro-inflammatory factors. Pyroptosis can be detected by measuring the levels of intracellular expression of inflammatory factors and Caspase-1 proteins (Toldo and Abbate, 2024). The NLRP3/Caspase-1 pathway is one of the classical pathways of cellular pyroptosis, involving several key components: NLRP3, Caspase-1, ASC, GSDMD, and GSDMD-N (Imre, 2024).

Upon stimulation by pyroptosis signals, intracellular pattern recognition receptors bind to pattern recognition molecules. NLRP3, initially inactivate in the cytoplasm, undergoes oligomerization upon relevant stimulation, which is a crucial step for its activation. The PYD structural domain of NLRP3 binds to the PYD structural domain of ASC, while the CARD structural domain of ASC binds to the CARD structural domain of pro-Caspase-1, leading to the formation of the NLRP3 inflammasome (NLRP3-ACS-proCaspase-1). Upon activation of the NLRP3 inflammasome, caspase-1 is activated and specifically cleaves the precursors of IL-1β and IL-18, conveting them into their active forms. This process triggers an inflammatory cascade and induces cellular pyroptosis (Abbate and Booz, 2019; Li et al., 2022; Liang et al., 2020). During myocardial ischemia, large amounts of ROS are generated, playing a crucial role in oxidative stress and acting as key regulators of the NLRP3 inflammasome. At the onset of AMI, damage-associated molecular patterns (DAMPs)-induced ROS stimulate the detachment of TXNIP from its binding partner, TRX. TXNIP then translocates from the nucleus to the cytoplasm, where it binds to NLRP3, leading to the activation of the NLRP3 inflammasome. This activation results in the activation of Caspase-1, which cleaves the precursors of IL-1β and IL-18 into their active forms. These active cytokines then trigger cellular pyroptosis (Qiu et al., 2019; Sukhanov et al., 2021). Inhibition of NLRP3 using small interfering RNA (siRNA) in animal models of permanent myocardial infarction has been shown to suppress inflammasome activation, reduce cardiomyocyte death, and attenuate VR after AMI (Mezzaroma et al., 2011). After the establishment of myocardial ischemia/reperfusion model using ASC knockout mice (ASC-/-mice) and Caspase-1 knockout mice (Caspase-1-/-mice), it was found that the inflammatory response was significantly reduced compared to wild-type mice. This reduction was evidenced by decreased inflammatory cell infiltration, lower expression of cytokines and chemokines, and a smaller myocardial infarction area in the knockout mice (Kawaguchi et al., 2011).

In this study, CB-dock was used to predict the binding affinity of KR to TXNIP. CB-dock can automatically predict binding modes without prior binding site information by using a novel curvature-based cavity detection approach to identify potential binding sites and calculate the center and size of the binding site (Liu et al., 2020). The molecular docking results showed that KR had a better binding affinity with TXNIP. The experimental results of this study demonstrated that NLRP3 expression significantly increased after combined LPS+ATP modeling, indicating successful model establishment. KR significantly reduced oxidative stress injury and decreased the expression of cellular pyroptosis-related proteins and genes in H9c2 cells, suggesting that the cardioprotective effect of KR is associated with the inhibition of the ROS/NLRP3 signaling pathway. Although this study provides insights into the cardioprotective mechanism of KR, it only established a correlation between KR and myocardial protection. The detailed mechanisms were not clarified using specific agonists or gene overexpression techniques.

In conclusion, the mechanism by which KR protects cardiomyocytes from injury is related to the inhibition of the TXNIP/NLRP3 pathway. This provides a theoretical and experimental basis for its possible clinical application.
